Ku & K Band Low Noise pHEMTs

HIGH QUALITY AND RELIABILITY SINCE 1959

CEL offers industry-leading Low Noise GaAs FET devices. Exceptional noise figure performance at frequencies past 20GHz are achieved in both ceramic and plastic packages.

CEL’s new RF product lineup includes a broad range of low cost and high performance Switch ICs, Low Noise Amplifier ICs and Low Noise Transistors.

CEL RF and Microwave products serve wireless applications including WLAN, ZigBee, Bluetooth, SDARS, GNSS, DBS, AMI, Mobilecomm, and General SRW (Including Wireless Security).

These CEL products maintain the high Japanese manufacturing quality and reliability for which CEL is well known.

CEL continues to support our RF Components through the availability of many evaluation boards and highly skilled Application Engineering operating within our RF laboratories.

For soldering guides, regulatory & environmental information please visit Support

Brochures

S-Parameters

Modelithics Equivalent Circuit Models

Ku & K Band Low Noise pHEMTs > Low Noise DevicesTypical Specifications @ TA = 25°C:

Part Number Type Frequency (GHz) VDS (V) IDS (mA) NFOPT (dB) GA (dB) Code

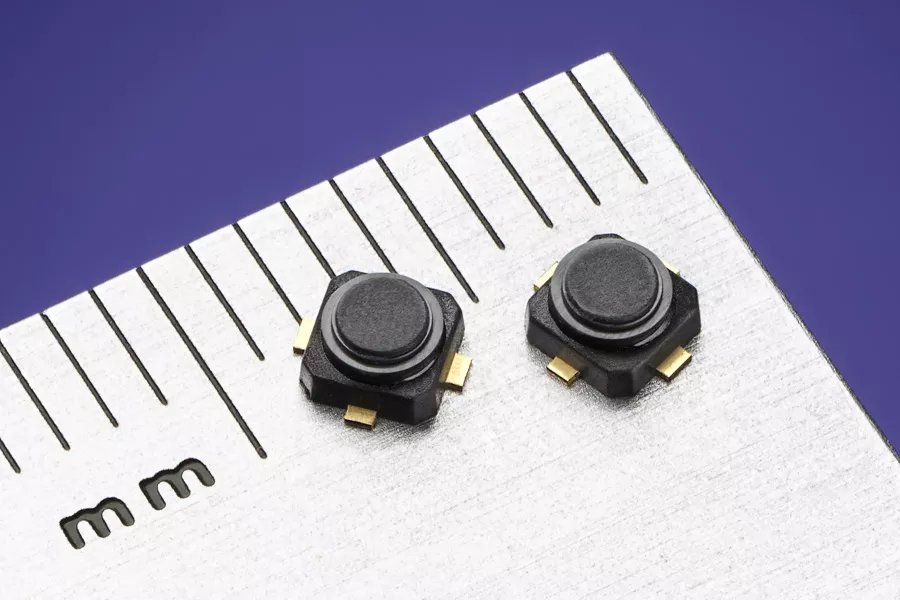

CE3512K2 Micro-X Plastic 12 2.0 10 0.3 13.7 K2 Buy
CE3514M4 Plastic SMD 12 2.0 10 0.42 12.2 M4 Buy
CE3520K3 Micro-X Plastic 20/24 2.0 10 0.55 / 0.80 13.8 / 13.9 K3 Buy
CE3521M4 Plastic SMD 20 2.0 10 0.70 11.9 M4 Buy
Note: Click on Part Number for corresponding data sheet. For additional resources and documentation, see the SUPPORT section.
