Finalizing New Multi-Protocol Connectivity Modules

CEL is Finalizing Designs on Several Exciting New Multi-Protocol Connectivity Modules

In Q2-Q3, CEL will be introducing several multi-protocol products for edge device and network infrastructure applications. Beyond the key features of each product, CEL will be optimizing each solution for best-in-class performance…range, coverage, power consumption, throughput, latency, Etc. Enablement will be supported with development kits, quick-start guides, integration guides, example code, documentation, and an eager team ready to assist your efforts.

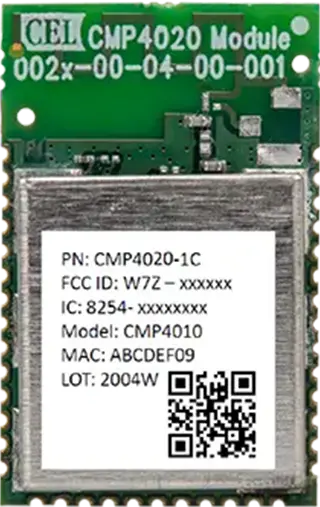

Dual-Band Wi-Fi + BT, HOSTED or HOSTLESS Solution

  • CMP4020
  • 2.4/5GHz Wi-Fi 4
  • 2.4GHz Bluetooth 5/MESH
  • Cortex ARM M4 for Application
  • Cortex ARM M0 for Low-Power Operation
    • 7uA Deep Sleep
    • 30uA Sleep
  • FreeRTOS or AT Command Set
  • 16Mb Flash, 512kB SRAM, 35 GPIO, USB/SPI/UART/I2S...
  • Wi-Fi Direct, Soft AP, AWS/GCP/Azure
  • Example Code...OTA, Provisioning
  • Trust Zone, WPA3
  • Certified (on-board antenna)

CEL’s Dual-Band CMP4020 is Drop-in Compatible with the Single-Band CMP4010

Many OEMs have a need to offer both 2.4GHz and 2.4/5GHz end-products. CEL has developed a solution that gives you two designs in one. Whether you want to protect your development investment, improve TTM, offer higher throughput with 5GHz, or provide your customers with either option, CEL has you covered with one design.

CMP4010 (2.4GHz) and CMP4020 (2.4/5GHz) Compatibility:

- Pin-pin
- Mechanically
- Software
- Development Tools
- Both HOSTED or HOSTLESS Architectures

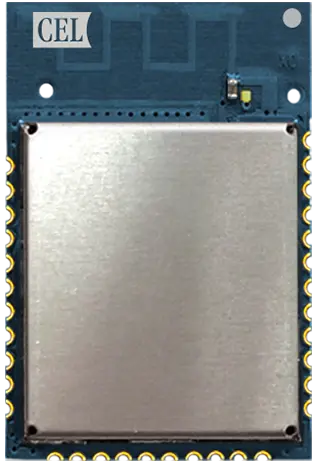

Zigbee/Thread/Matter/Bluetooth 5/NFC

  • CMP53x
  • Cortex ARM M4
  • +10/+20dBm Output Power
  • 1.64MB Flash, 152kB SRAM
  • 22 GPIO, I2C/SPI/USART
  • PWM, ADC, RTC
  • Low Power
    • Rx~4.3mA
    • Tx~20/95mA(+10/+20dBm)
    • Sleep~350nA
    • Wake on IO
  • NFC Type 2 Tag
  • Certified (on-board antenna)
  • NXP's MCUXpresso IDE

Read More

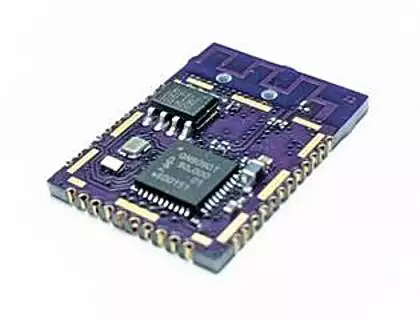

Bluetooth 5.0/NFC

  • CBT250
  • Cortex ARM M4
  • +10/+20dBm Output Power
  • 1.64MB Flash, 152kB SRAM
  • 22 GPIO, I2C/SPI/USART
  • PWM, ADC, RTC
  • Low Power
    • Rx~4.3mA
    • Tx~20/95mA(+10/+20dBm)
    • Sleep~350nA
    • Wake on IO
  • NFC Type 2 Tag
  • Certified (on-board antenna)
  • NXP's MCUXpresso IDE

Read More

HOSTED 2x2 MU-MIMO Wi-Fi 6 w/Concurrent BT

CMP9620

  • Linux/Android
  • Pre-built drivers tested with i.MX8
  • 802.11 ax
  • Dual-Mode Bluetooth v5.3
  • PCIe Host Interface
  • M.2 E-Key Form Factor
  • 3 x Integrated MFH4 Connectors

Contact CEL for more details

RECENTLY RELEASED PRODUCTS

In Stock!!!

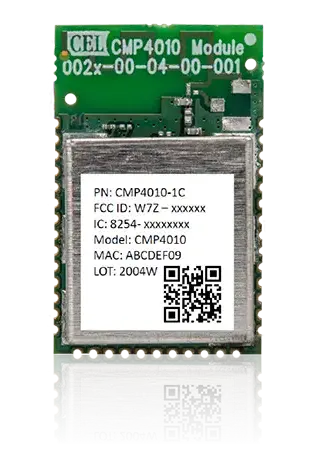

CMP4010 - HOSTED or HOSTLESS Wi-Fi 4 + BT

  • Single Band Wi-Fi 4
  • BT 5/Mesh
  • HOSTED - AT Command Set
  • HOSTLESS - FreeRTOS
  • Cortex M4 - Application
  • Cortex M0 - Low Power Modes
  • Application Resources...16Mb Flash, 512kB SRAM, 35 GPIO, PWM, USB/SPI/UART/I2S
  • On-board Antenna or Connector
  • Certified

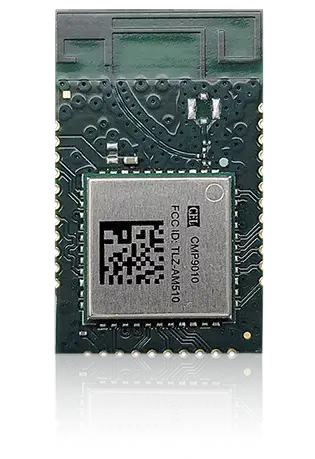

CMP9010 - HOSTED Dual-Band Wi-Fi 4 + BT

  • Dual-Band Wi-Fi 4
  • BT 5.1/Mesh
  • SDIO/UART Interface
  • Linux or RTOS
  • Pre-Built Drivers
  • Pre-tested w/NXP i.MX MPUs and RT MCUs
  • On-board antenna or connector
  • Certified
