CEL’s comprehensive portfolio of Low Noise FETs delivers exceptional performance for satellite communication applications. Our proven solutions support multiple frequency bands and configurations, enabling reliable connectivity for DBS/LNB systems, VSAT networks, and advanced satellite terminals.
12 GHz LNB Solutions
Optimized for DBS and Digital Broadcast Systems
| Part Number | Type | NF (dB) | Gain (dB) |
|---|---|---|---|
| CE3512K2 | Micro-X Plastic | 0.3 | 13.7 |
| CE3512K2 | Micro-X Plastic | 0.32 | 14.0 |
| CE3514M4 | Plastic SMD | 0.42 | 12.2 |
| CE7613M4 | Plastic SMD | 0.35 | 14.1 |
20 GHz LNB Solutions
High-Performance for VSAT Applications
| Part Number | Type | NF (dB) | Gain (dB) |
|---|---|---|---|
| CE3521M4 | Plastic SMD | 0.70 | 11.9 |
| CE3520k3 | Micro-X Plastic | 0.55/0.80 | 13.8/13.9 |
1.575 GHz Solutions
Ultra-Low-Noise Performance at 1.575 GHz
| Part Number | Frequency | NF (dB) | Gain (dB) |
|---|---|---|---|
| CA3509M4 | 1.575 GHz | 0.40 | 17.0 |
Target Applications
Digital Broadcast Systems and Low Noise Block downconverters
Very Small Aperture Terminal Satellite communication systems
Communication Systems
Buy Now
Try provisioning your own CMP4010
The CEL Advantage
CEL’s Low Noise FET solutions provide numerous advantages for satellite communication applications:
- Ultra-Low Noise Figure & High Gain <1.0dB NF with strong gain maintained up to 24 GHz.

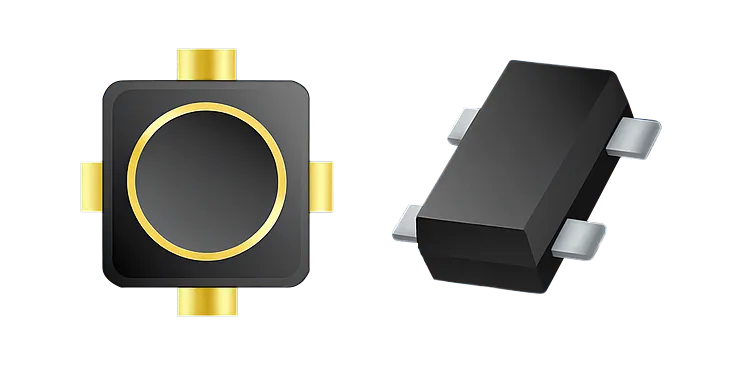

- Ceramic & Plastic Package Choices get the right balance of cost, size, and thermal performance.
- Made-in-Japan Quality & Reliability decades-long track record you can count on.
- Hands-On Design Support Application note, layout guide, S-parameters.
Support Documentation & Resources
CEL provides comprehensive technical support to ensure successful integration of our LNB solutions into your satellite communication systems.
- Using Low Noise Block in Satellite Applications
- Product Brief - GaAs FETs
- S-Parameters
- Modelithics Equivalent Circuit Models
- RF Component Recommended Soldering Conditions - Partial Heating
- RF Component Recommended Soldering Conditions - Reflow
- K2 & K3 Package Devices Recommended Soldering Flux & Cleaning Conditions
- K2, K3, M4 Layout Guide
- RF Components Selection Guide
Let CEL Help
Whether you’re developing DBS/LNB systems, VSAT terminals, or microwave communication networks, our comprehensive portfolio provides the precision-engineered components you need.
